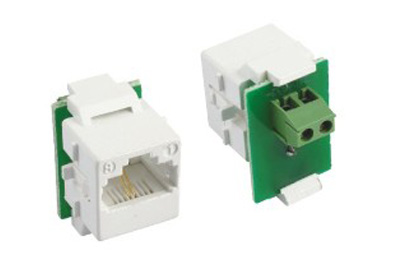

Cat3 keystone jack
Specifications1. Keystone Jack / Modular Jack
2. CAT3
3. 6P4C
4. 90 degree
RJ11 Keystone Jack / Telephone keystone jack /Cat3 Voice Keystone Jack
Keystone jack, CAT3, 6P4C, 90 degree
Main Features
This keystone jack can be used with TAEPO’s faceplate and patch panel
Reliable gas-tight connections
110/IDC tool for wire termination
Universal T568A/B wiring label
Technical Parameters
Operating Temperature Range: -40º to 70 ºC (-40º to 158 ºF)
RJ Socket, 8 Positions, General Specification: FCC Part 68.500 (IEC 603-7)
Transmission Performance and Reliability: ≥ EIA/TIA 568-B.2-10 and ISO 11801 Class EA
Number of Plug Insertion Cycles: ≥ 750 (IEC/EN 60603-7)
Diameter Range for Solid and 22-24 AWG
Stranded Copper Conductors: 0.50 mm to 0.65 mm (0.016″ to 0.025″)
Wire Insulation Diameter Range (PE,PVC): 1.04 mm to 1.60 mm (0.041″ to 0.063″)
Contact Resistance: ≤ 3 mΩ typical
Contact Re-terminations: ≥ 200
Insulation Resistance at 40 ºC (104 ºF) and 93% RH: ≥ 500 MΩ (IEC 512-2-3a)
Safety Rating: UL 1863
