Specifications

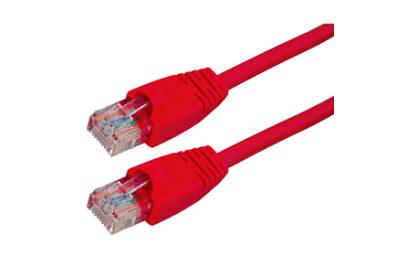

UTP Ca5e patch cord
Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%, CMP 72%
Maximum Mutual Capacitance: 5.6nF/100m
Maximum Capacitance Unbalance: 330pF/100m
Maximum DC Resistance:9.38Ω/100m
Maximum Resistance Unbalance: 5%
Maximum Propagation Delay Skew: 30ns/100m
Maximum Propagation Delay:536ns/100m@100MHz
Minimum Bending radius: 10×Overall Diameter
Voltage Rating: 80V rms
Maximum Pulling Load:80N
Working Temperature:-5°C~+50°C
Storage Temperature:-20°C~+60°C
Flame Retardant: UL 1581(CM Jacket); UL 1666(CMR Jacket); UL 910(CMR Jacket); IEC 60332-1(FRPVC&LSZH Jacket); IEC 60332-1 and IEC 60332-3C(LSFROH Jacket)
Cable Parameters:
| Item No.
| Construction
| Nominal Conductor Dimension
(MM) | Nominal Insulation Dimension
(MM) | Pairs | Overall Diameter
(mm) | Type of Jacket
| Remark |
| 001 | UTP | 0.48/0.50 | 0.90 | 2 | 3.8 | PVC | |
| 002 | UTP | 0.48/0.50 | 0.90 | 4 | 5.0 | PVC/LSZH | |
| 003 | UTP | 0.50 | 0.95 | 4 | 5.3 | PVC/LSZH | |
| 004 | UTP | 0.50 | 0.95 | 4 | 5.3 | PE | |
| 006 | UTP | 0.50 | 0.95 | 4 | 6.5 | PVC+PE | Double Jacket |
| 007 | UTP | 0.50 | 0.92 | 25 | 13.0 | PVC/PE/LSZH |
Product Highlights:
Provide excellent bandwidth beyond 100MHz.
Meet the strict flame retardant and environmental requirements in Europe and US.
Different jacket materials available for choice.
Guaranteed ACR Value>0dB@200MHz.
Special propose cables can be offered according to customer request.
Different jacket color options available for choice.
Technical data
| Inner Conductor | Number of Pairs | 4 |
| Total Number of Conductors | 8 | |
| Conductor Material | BC-Solid Bare Copper | |
| Wire Gage | 24AWG | |
| Conductor Diam(ø)mm | Φ0.50±0.03mm | |
| Elongation | ≥15% | |
| Insulation | Insulation Material | HDPE – Polyethylene |
| Nom. Thickness | 0.215mm | |
| Insulation Dia. | Φ0.95±0.05mm | |
| Elongation | ≥300% | |
| Color Cord | Pair 1:White-Blue & Blue;
Pair 2:White-Orange & Orange Pair 3:White-Green & Green; Pair 4:White-Brown & Brown | |
| Paired | Length of Lay | <30mm |
| Filled | Jelly filled | No |
| Cabling | Order of the Pair | See the Cross Section |
| Out Sheath | Sheath Material | PVC (Flame Retardant / RoHS …) |
| Color | Blue | |
| Rip Cord | 200D×3 | |
| Nom. Thickness | 0.60±0.05mm | |
| Min. Thickness | 0.55mm | |
| Max. overall Dia. | Φ5.30±0.3mm |
1. Fast and Convenient Connection
2. The Perfect Combination of the High Quality Cat5e Cable and RJ45 Connetor
3. Multi-Strands Conductor Insures the Excellent Reliability and Stability.
4. Color in Grey, Blue, Yellow, Red or as per Your Requirements
5. Length in 1m, 2m, 3m, 5m, 10m, 20m, 30m or as per Your Requirements
Applications:
1. LAN Network System
2. Computer Network Distributing System
3. Telecommunication Network System
4. Testing Equipment System
5. CATV System
