Description
Comments

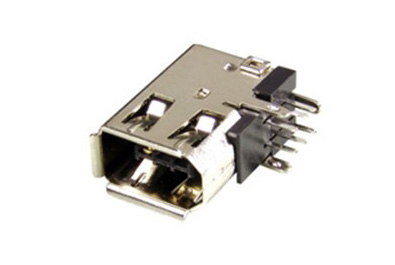

IEEE 1394 firewire connector
1394-UP-M2-6P (1394-side insert -female base-6 pins )
| Electrical Characteristics | |
| Voltage current rating | 1.5AMP 40V AC |
| Insulation resistance | 100mΩ Min |
| Contact resistance | 50mΩ Max |
| Dielectric withstanding voltage | 100V AC |
| Environmental | |
| Operating temperature | -20 °C to 85°C |
| Material | |
| Housing | High temperature thermoplastics UL94 V-0 |
| Terminal | Copper alloy contact Area plating Au 3u”, 5u”, 10u”, 15u”, 20u”, 30u”,50″:Tin 100u” Min Solder Tails |
| Shell | Copper Alloy,Plating Nicketl |
