Description
Comments
Material

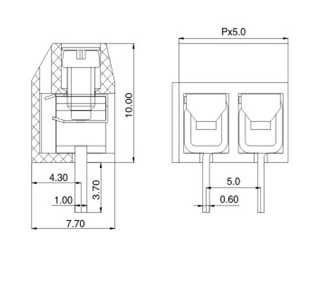

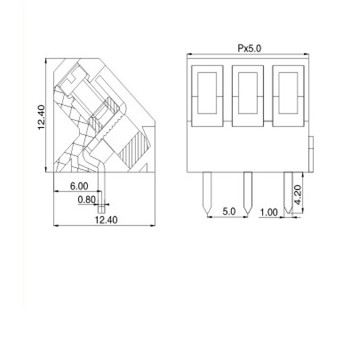

Pitch:5.0mm
Poles:2P or 3P
Screws:M3 Steel Zinc Platedor Brass
Contact:Steelzinc Platedor Brass Ni Plated or stainless steel
Pin Header: Brazz Tin Plated
Housing: PBT UL94V-0
Electrical:
Rated Voltage:300V
Reted Current:16A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC1500V/1Min
Wire Range:22-14 AWG/2.5mm2
Mechanical:
Temp.Range:-30~120 degrees
MAX soldering: 250 degrees for 5 sec
Torgue:0.5Nm
