Description
Comments
Material

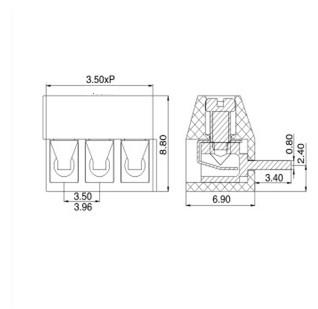

Pitch:3.5mm
Poles:2P or 3P
Screws:M2.5 Steel Zinc Platedor Brass
Contact:Steelzinc Platedor Brass Ni Plated
Pin Header: Brazz Tin Plated
Housing: PA66 UL94V-0
Electrical:
Rated Voltage:300V
Reted Current:10A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC1500V/1Min
Wire Range:24-12 AWG/2.5mm2
Mechanical:
Temp.Range:-40~105 degrees
MAX soldering: 250 degrees for 5 sec
Torgue:0.4Nm(3.6lb.in)
Pitch:3.5mm
Poles:2P or 3P
Screws:M2.5 Steel Zinc Platedor Brass
Contact:Steelzinc Platedor Brass Ni Plated
Pin Header: Brazz Tin Plated
Housing: PA66 UL94V-0
Electrical:
Rated Voltage:300V
Reted Current:10A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC1500V/1Min
Wire Range:24-12 AWG/2.5mm2
Mechanical:
Temp.Range:-40~105 degrees
MAX soldering: 250 degrees for 5 sec
Torgue:0.4Nm(3.6lb.in)
Strip Length:6-7mm
