Description
Comments

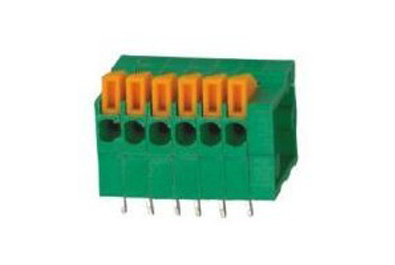

Material
Pitch:2.54mm
Poles:from2P to 24P
Pin Header: Brazz Tin Plated
Contact:Stainless steel
Housing: PA66 UL94V-0
Pitch:2.54mm
Poles:from2P to 24P
Pin Header: Brazz Tin Plated
Contact:Stainless steel
Housing: PA66 UL94V-0
Electrical:
Rated Voltage:150V
Reted Current:2A
Contact resisitance: 20M Ohm
Insulation Resistance: 500M Ohm/1000V
Withstanding Voltage:AC1500V/1Min
Wire range:26-20 AWG
Mechanical:
Temp.Range:-40~130 degrees
MAX soldering: 250 degrees for 5 sec
Strip Length:10mm
