Rj45 Connector With Integrated Magnetics
10/100 Base-T,Tab UP,LED/EMI Optional

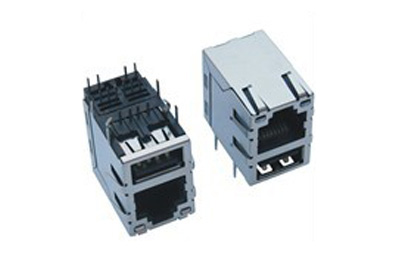

RJ45+USB Series (Single USB) 6P Shield Jacks With LED And EMI (Side Entry)
. Compl ies with IEEE standards and al l Gigabit
specificatons including 350uH with 8mA DC bias
. Contact: Phosphor Bronze, 6u-inch gold flashed
unless specified
. Housing: Thermoplastic PBT+30%GF UL94V-0 rated
. Operating temperature:0℃ to +70℃
. Single port shield RJ45 with single USB
. Storage temperature: -40℃ to +85℃.
. Lead-free process,compl iant RoHS
Feature:
Electrical Specifications: (25℃)
1. T urns Ratio:
TX & Rx= 1:1±5%
2. Insertion Loss:
@1~80MHz : -1.0dB Max
@ 100MHz:-1.5dB Max
3. Return Loss: @1~30MHz : -20dB Min
@ 60~80MHz : -12dB Min
4. Common Mode Rejection: @1~100MHz: -30dB Min
@200MHz: -20dB Min
5. Crosstalk:
@1~100MHz : -35dB Min
6. OCL: @100KHz, 0.1V , 8mADC : 350uH Min
7. Hi-Pot : 1500V AC, 1mA, 1Sec
