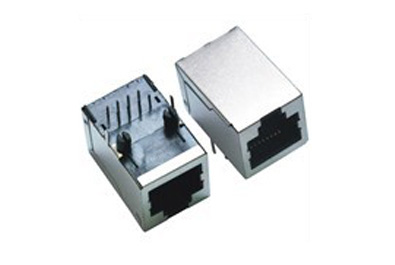

1*1 RJ45 Connector With Integrated Magnetics
10/100 Base-T,Tab UP,LED/EMI Optional
(1 inch) (Single Port) Shield Jacks Tab UP 1 Inch (Side Entry)
Feature:
. Peak Solder rating 260℃
.Parts are 100% tin matte finish over neckel
.Moisture Sensitivity level rating from 1℃ to 5℃
. Storage temperature: -40℃ to +85℃
. Lead-free process,compl iant RoHS
ELECTRICAL SPECIFICATIONS @25℃
unlessotherwise noted
Insertion Loss: 1-65MHz -1.0dB MAX
Return Loss: 1-10MHz -20.0dB MIN
10-30MHz -16.0dB MIN
30-60MHz -12.0dB MIN
60-80MHz -10.0dB MIN
Crosstalk:
10-30MHz -40.0dB MIN
30-60MHz -35.0dB MIN
60-100MHz -30.0dB MIN
Common Mode Rejection:
1-50MHz -30.0dB MIN
50-150MHz -20.0dB MIN
Hipot:1500V AC 6S 1mA
OCL:350uH MIN @ 100KHz 100mV 8mA DC
