Description
Comments

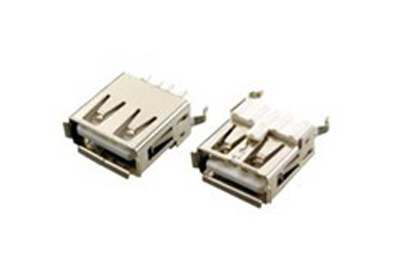

USB 2.0 A tyep Female Connector/jack
Temperature: -20ºC ~ +65ºC
2) Withstand voltage: AC, 500V, 50 – 60Hz per minute
3) Rated load: DC, 50∨, 1A
4) Actuating force: 3.57kg (max. )
5) Contact resistance: 50MΩ (max. )
6) Life: 10, 000 times
7) Insulation resistance: 500MΩ (min. )
Materials
Shell: Brass With Nickel Plated
Housing: Engineer Thermoplastic.
Flammability Rating UL 94V-0.
Contacts: 0.25mm Thickness Phosphor Bronze.
Plating: Gold Plating Over Nickel In Contact Area.
Tin Plating Over Nickel In Solder Area.
We are China Female USB 2.0 Connector manufacturer offer best Female USB 2.0 Connector OEM, ODM,service.
